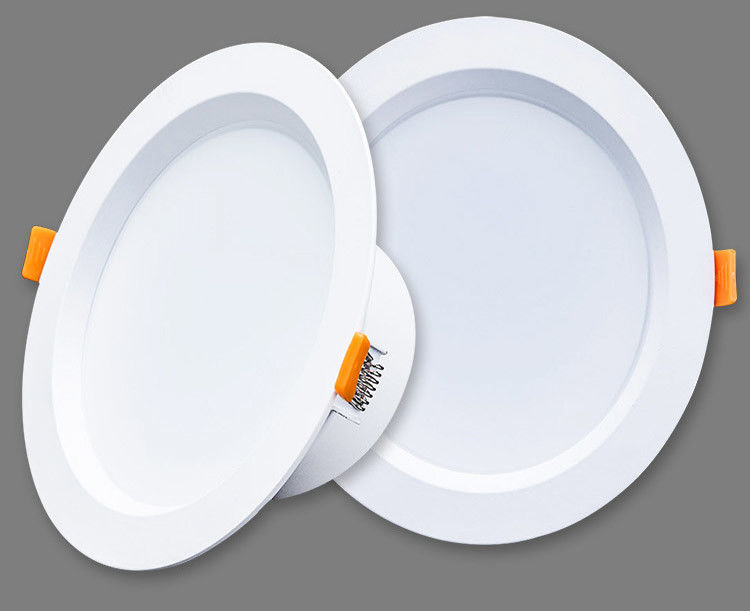

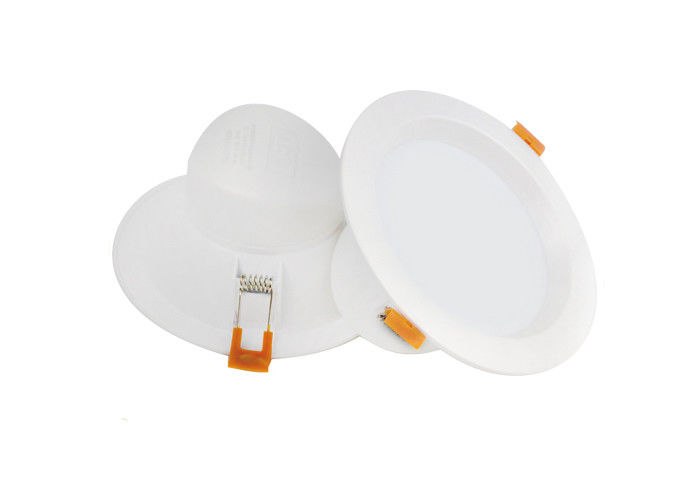

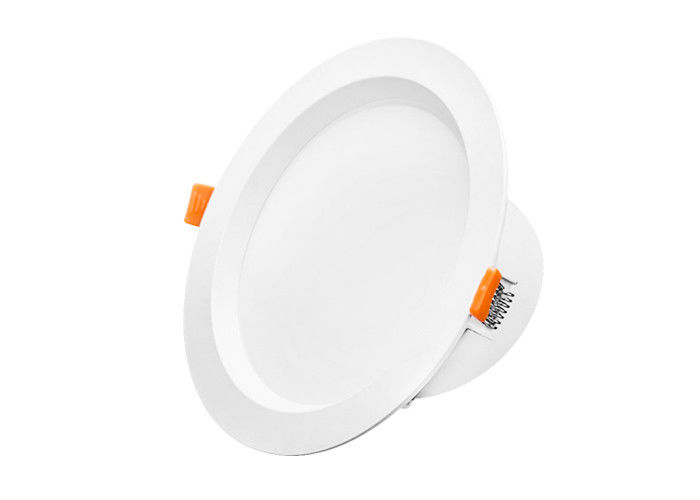

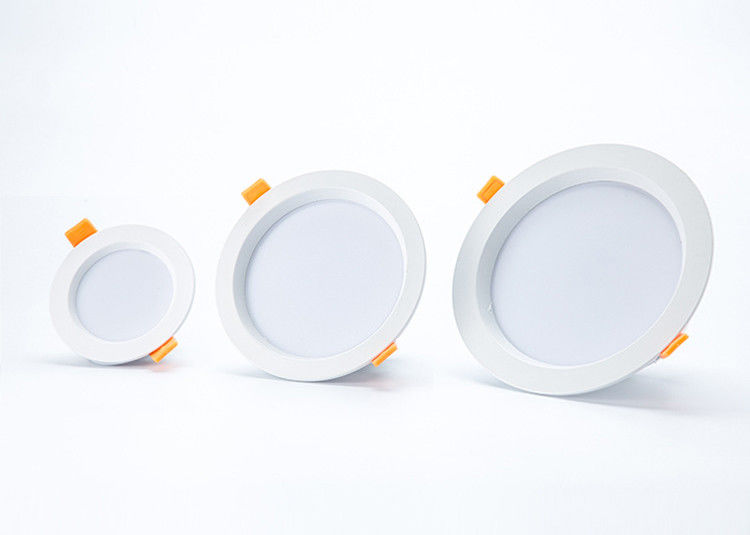

Round LED Recessed Downlights , LED Recessed Lighting Fixtures 5W 18W Aluminium Body IC Driver
-
Highlight
led down lamp
-
Lamp Power5W 9W 12W 18W
-
Input Voltage(V)AC100-240V
-
Lumens90-100LM/W
-
Beam Angle120°
-
CRI>80
-
Lamp Body MaterialAluminum Alloy +PC
-
Color Temperature2800~7000K
-
DiameterΦ98 Φ122 Φ140 Φ170mm
-
CutΦ75 Φ100 Φ120 Φ150mm
-
CoverScrub Cover
-
LED Light SourceEpistar SMD2835
-
Warranty3 Years
-
Place of OriginChina
-
Brand NameMINSENS
-
CertificationCE ROHS DLC ETL
-
Model NumberMS-DWL-5W 9W 12W 18W
-
Document
-
Minimum Order Quantity100pcs
-
PriceNegotiable
-
Packaging DetailsStandard export packaging or customize
-
Delivery Time5-10 work days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000000pcs per month
Round LED Recessed Downlights , LED Recessed Lighting Fixtures 5W 18W Aluminium Body IC Driver
Round 5W 9W 12W 18W Aluminium Body IC Driver AC100 - 240V SMD2835 LED Recessed
Downlights Fixtures
Description
1. LED Downlight is friendly environment, energy saving, long lifespan. 14W LED Downlight can replace 120W traditional incandescent lamp.
2. The lenses are with diffuser to prevent from glare.
3. The lamp is made of die-cast aluminum to keep good heat dissipation to prolong its lifespan and save energy over 10 times than traditional energy-saving lamp.
4. Using isolated constant current drive power, it is with short circuit, open circuit protection, safety and reliability adaptable to wide range voltage.
5. No mercury and other harmful substances. No ultraviolet or infrared radiation.
6. Long lifespan, energy saving, environmental protection, low power consumption and low calorie and low cost.
7. Low light decay, lifespan: >50000hours.
Specification
| Type | Inches | Power | Input voltage | lumens | CCT | LED chips | Size(mm) | Cut |
| MS-DLC-5W | 2.5' | 5W | AC100-240V 50-60Hz |
400-500LM | 2800K-3200K 4000K-4500K 6000K-6500K |
Epistar SMD |
Φ98 | Φ75-80mm |
| MS-DLC-9W | 3.5' | 9W | AC100-240V 50-60Hz |
750-900LM | 2800K-3200K 4000K-4500K 6000K-6500K |
Sanan SMD |
Φ122 | Φ100-110mm |
| MS-DLC-12W | 4' | 12W | AC100-240V 50-60Hz |
1000-1200LM | 2800K-3200K 4000K-4500K 6000K-6500K |
Sanan SMD |
Φ140 | Φ120-130mm |
| MS-DLC-18W | 6' | 18W | AC100-240V 50-60Hz |
1600-1800LM | 2800K-3200K 4000K-4500K 6000K-6500K |
Sanan SMD |
Φ170 | Φ150-155mm |
Details
1. Downlight Shell (housing): high thermal-conductivity Aluminium (Anti-aging, UV-protection, anti-striking...)
2. PCB: high-precision aluminum cut, anodized and sandblasted.
3. COB: surface emitting (reducing light luminosity loss and cooling performance)
4. Lens: PMMA materials (light transmittance: >92%)
5. Radiator: precision-thickening and finned heat sink (keeping better heat dissipation)
6. Drive: intelligent IC with constant current design
7. Mould: new-style and special
Applications
Shopping malls ,Restaurants, meeting rooms,Hall, home,Interior lighting, partial lighting and office. Especially suitable for public areas like lobbies, corridor and stairwells
Packaging
Standard export packaging or customized according to customer requirements
